Merak 2800

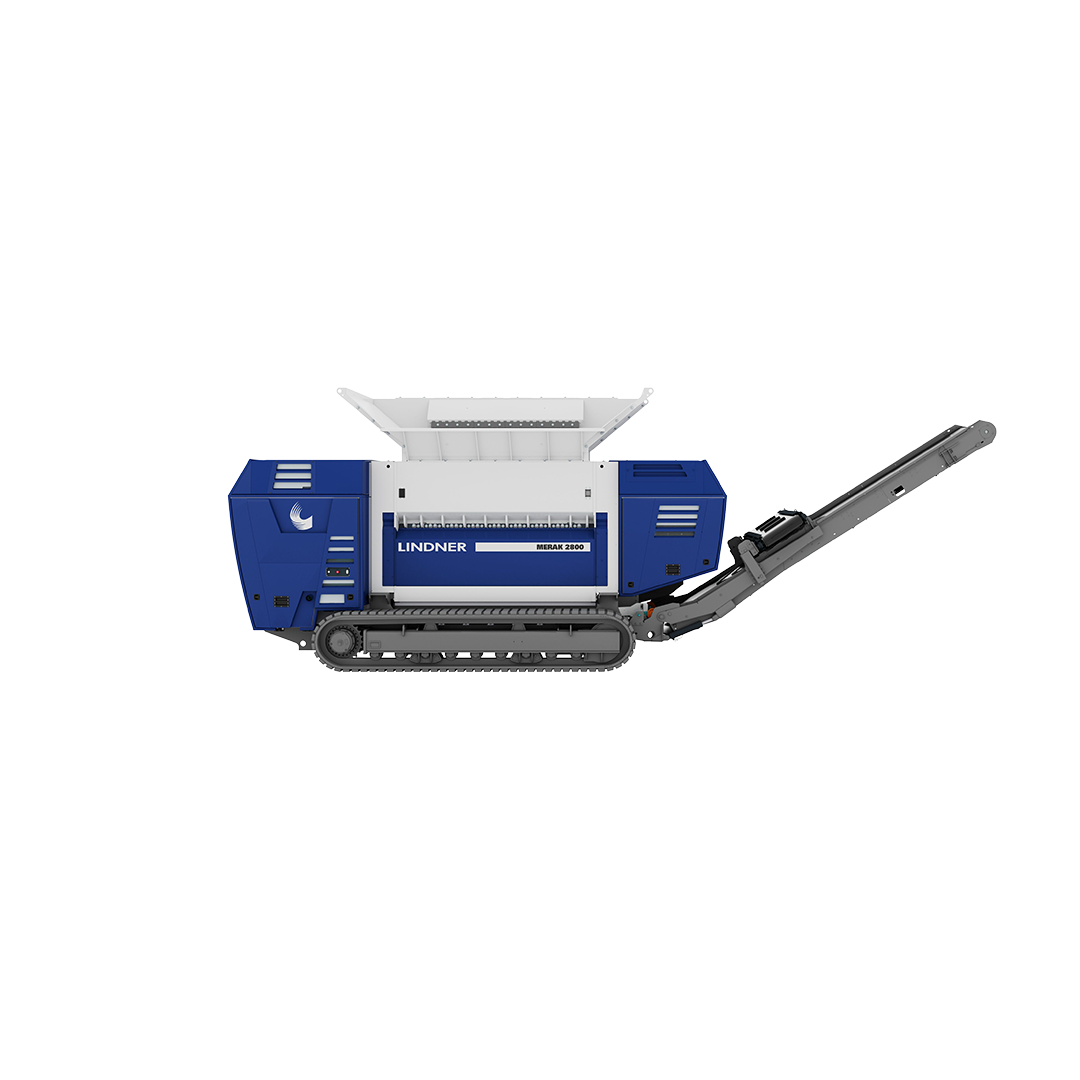

Merak 2800 is the new star of the Lindner range, designed to set new standards in shredding through an unprecedented combination of versatility, efficiency and productivity.

Distinctive features:

  • Total versatility: usable for both primary and secondary shredding, with adjustable piece sizes from 30 to 350 mm, adapting perfectly to a wide range of materials.
  • Modular cutting system: three different cutting units available, configurable according to materials and production needs.
  • Fully electric drive: maximum energy savings and high performance thanks to the combination of ABB asynchronous motors and belt drive.
  • Oil-bath safety clutch: protects the cutting and transmission system in case of accidental blockages, drastically reducing downtime.
  • High mobility: thanks to the crawler chassis and 37 kW auxiliary diesel engine, the Merak moves independently even without external power supply.
  • Easy maintenance: quick service doors, automatic belt tensioning system and modular components simplify operations.

Main applications:

  • Bulky Waste
  • Industrial and commercial waste
  • Tires, mattresses, pallets, roots and green waste
  • MSW (Municipal Solid Waste)
  • Plastic materials (films, big bags, containers)
  • PVC and aluminum profiles.

Available cutting systems:

  • Primary shredding: for volume reduction and preparation of materials with particle sizes from 250-350 mm.
  • Universal shredding: ideal for a wide range of materials, with outputs of 80-300 mm.
  • Secondary shredding: designed to obtain secondary solid fuels (CSS) and fine particle sizes from 30-120 mm.

Info

DIMENSIONS
Measure (L x W x H, mm)
12211 x 3308 x 4421
Hopper opening (mm) (D x F, mm)
4780 x 2850
Feeding height (G, mm)
3745
Hooper capacity (mยณ)
9,5
Outlet width (mm)
1300
Total weight (kg)
44000 (46300 with hopper and magnetic separator)
CUTTING UNIT
Rotor length (RPM)
2800
Rotor speed (RPM)
55-87
Cutting system (mm)
145P, 116 PR, 172RP5
Number of knives (pcs.)
32,56,80
Hexagonal (pcs.)
8,8,8
Round screen (pcs.)
8,8,8
Polygonal (pcs.)
8,8,8
Sickle-shaped (pcs.)
8,8,8
DRIVE UNIT
Electric motor (kW)
1 x 250, 1 x 315
Mobility
Tracked chassis + 37 kW indipendent power unit
Frequency conventer
โœ”
