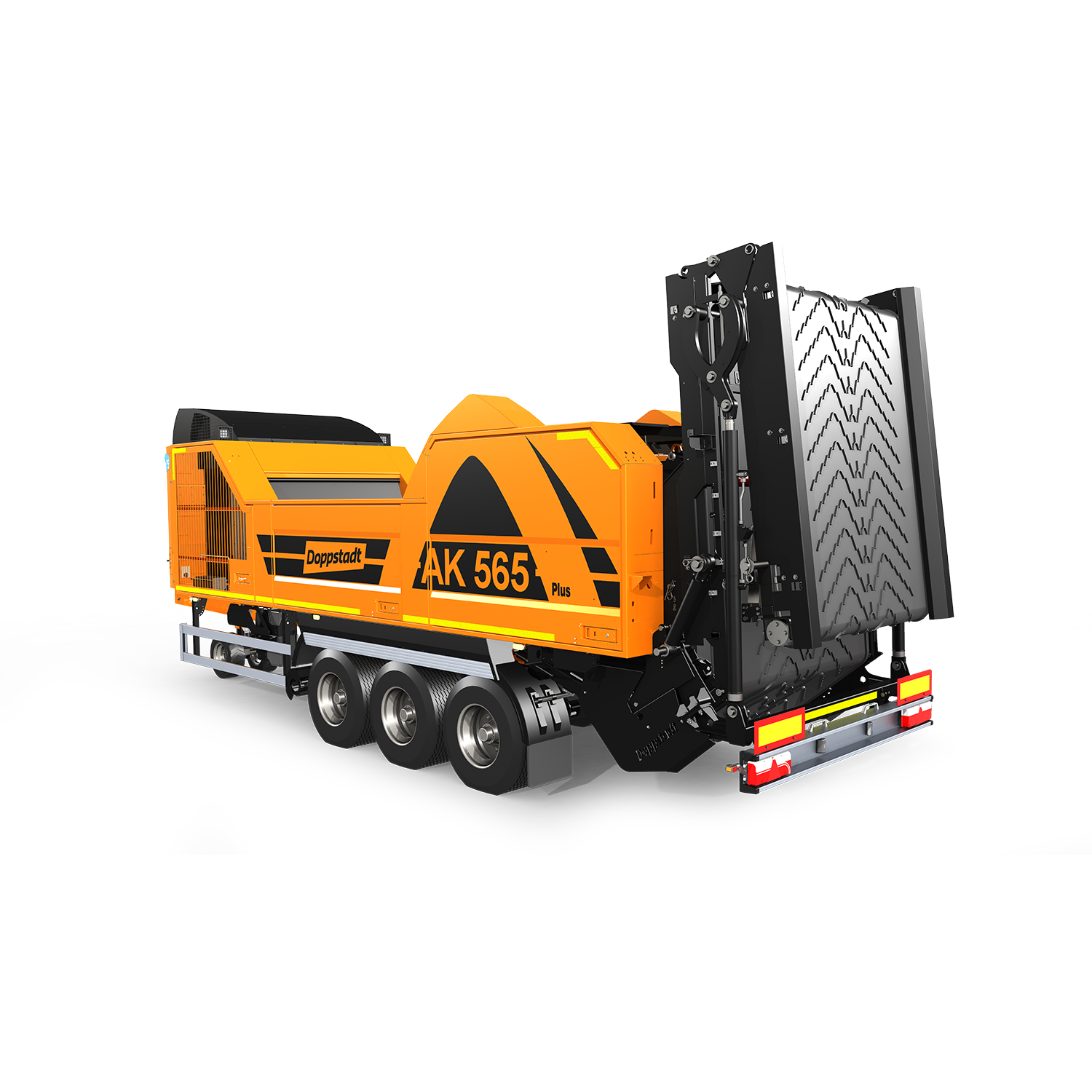

As successor of the AK 560 EcoPower Plus, the mobile 3-axle AK 565 Plus is equipped with a new engine that complies with the EU Stage V emissions standards. The 6 m long rear conveyor offers immense flexibility when it comes to discharging.
SPECIALS
With the extra long, three-part rear conveyor, which is standard on the AK 565 Plus, it is easy to bridge a distance of 6 m to discharge – with a discharge height of 4.2 m. This offers you more room to maneuver both when loading and clearing conical piles or when transferring shredded material to downstream machines or into a container. The rear conveyor can be lowered almost entirely to the ground, making tool changes or regular maintenance very simple and convenient.
The Doppstadt AK 565 Plus can be used for a very broad range of materials, such as for shredding waste wood, wood pallets, green waste, bio-waste, tree trunks and roots.
The scraper floor and the floating infeed roller have their own drive units. This optimizes the flow of material, which leads to higher throughput values for all types of materials. The optimized main drive with the proven MTU engine complies with the latest EU Stage V emissions standards, additionally offering a consistently higher torque (plus 140 Nm) compared to its predecessor.
The flail drum has a width of 1,750°mm and a diameter of 1,120 mm. It weighs an impressive 2.5 m. tons and revolves at approx. 1,000 revolutions per minute. It is equipped with 36 free-oscillating flails, ensuring that it can easily process oversized input materials.
APPLICATIONS
- Waste wood processing
- Composting
BENEFITS
- Separate drive unit for scraper floor and floating infeed roller for optimum intake of materials and high output
- Impervious to obstructions due to freely oscillating flails, continuous shredding thanks to load-sensing material infeed
- Latest engine and emissions control technology, compliance with the EU Stage V emissions standards
- Exhaust system made entirely of stainless steel, thermally shielded with highest quality integral insulation
- Lowerable rear conveyor ensures very short set-up times and maximum accessibility and ease of maintenance for the flail drum, tools and rear basket
- Rear conveyor 6 m long
- Freely oscillating flails of the flail drum, with a flywheel mass of approx. 2.5 m. tons, have flail tips that can be replaced individually and adapted for specific materials (e.g. hard metal or armored tips)
- Special basket* with 3D technology for processing waste wood, for improving the structural composition of the end product (*optional)
